STATIC SEALING ELEMENTS
Material
Pressure Max (Bar)
Heat Max (C)
Sliding Speed
NBR N 0188
500
-30 → +110
FKM F 0382
400
-30 → +225

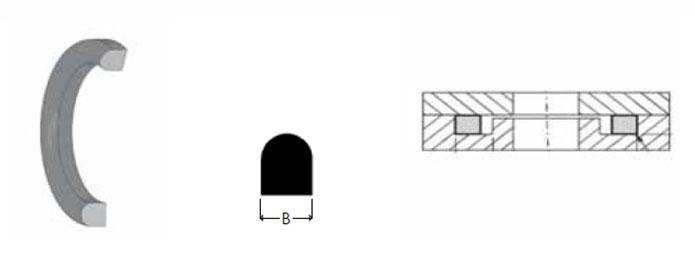

İS90 D-SECTION SEAL (CAP-UPPER)
Material
Pressure Max (Bar)
Heat Max (C)
Sliding Speed
NBR N 0188
500
-30 → +110
FKM F 0382
400
-30 → +225

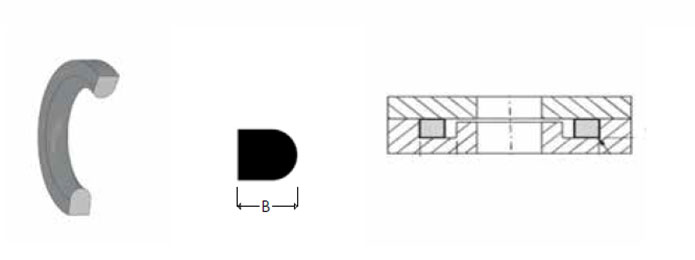

İS91 D-SECTION SEAL (CAP-INNER)
Material
Pressure Max (Bar)
Heat Max (C)
Sliding Speed
NBR N 0188
500
-30 → +110
FKM F 0382
400
-30 → +225

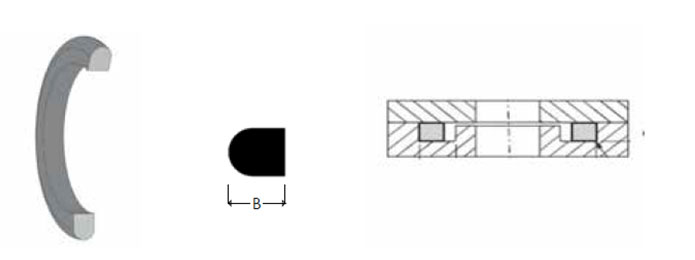

İS92 D-SECTION SEAL (CAP-OUTER)
Material
Pressure Max (Bar)
Heat Max (C)
Sliding Speed
TPE Tp 0060
600
-30 → +110
PTFE V 0310
500
-30 → +225

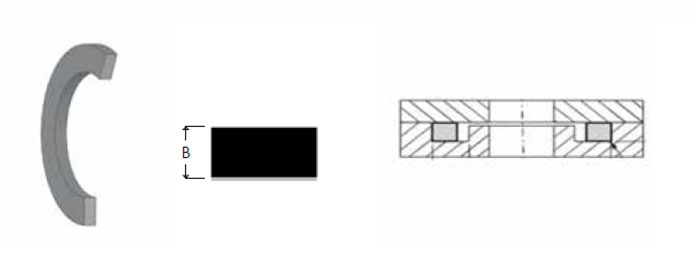

İS94 SUPPORT RING
Material
Pressure Max (Bar)
Heat Max (C)
Sliding Speed
NBR N 0170
400
-30 → +110
FKM F 0370
-30 → +225

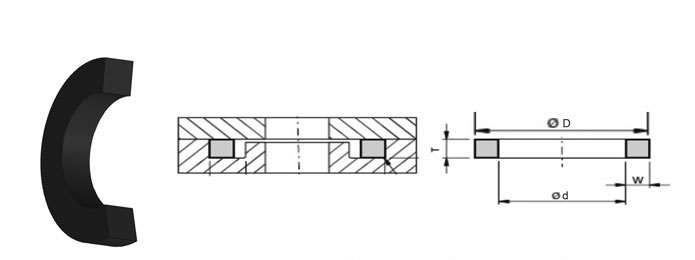

İS115 SQUARE RING
